24” x 24” Belt Conveyor Washer
Description
Stock Number: 1237
SPECIFICATIONS:
- Conveyor Width: 24"
- Conveyor Load Capacity: 25 Lb./Ft²
- Maximum Part Width: 24"
- Maximum Part Height: 24"
- Conveyor Speed: Variable, But Range is Unknown at this Time
- Heat Source: Natural Gas, 800,000 BTU at 2 PSI
- Tank 1 Volume: 1530 Gallons
- Tank 2 Volume: 700 Gallons
FEATURES:
- 8' of Pre Wash
- 4' of Wash
- Part Blow Off at End of Washer

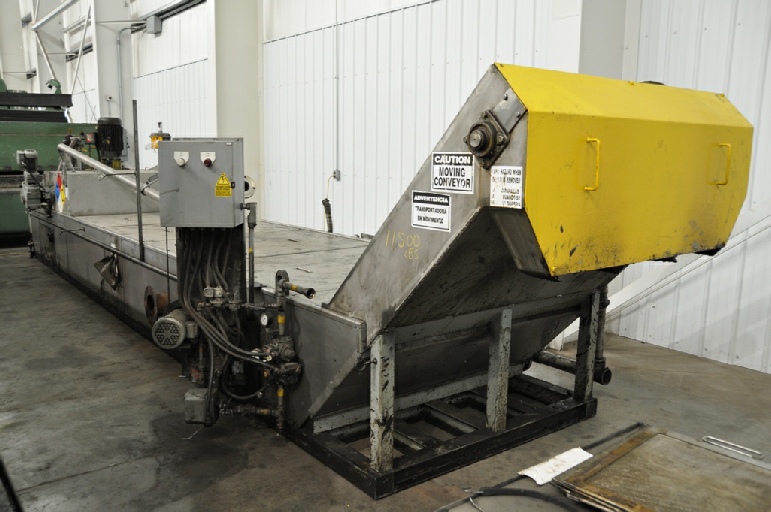

- Side Mounted Sludge Conveyor
- All Stainless Steel Construction (Welded)
- 7-Day Timer
- Temperature Control for Stage 1 and Stage 2
- Conveyor Speed Read-Out
- Jog Reverse
- Counter Flow
- Operator Access Doors
- 30 HP 1st Stage Pump
- 15 HP 2nd Stage Pump
- Voltage: Wired for 3 Phase, 60 Cycle, 460 Volts
- (2) Additional Pump Assemblies (No Motors)
Previous Application: Washing CV Joints for Rebuild
This washer was originally fitted with an extra long loading table approximately 60' long. That table frame is no longer with this washer but the conveyor is along with the end support rolls. The buyer is welcome to fabricate their own loading station using as much or as little of the conveyor that is present.
