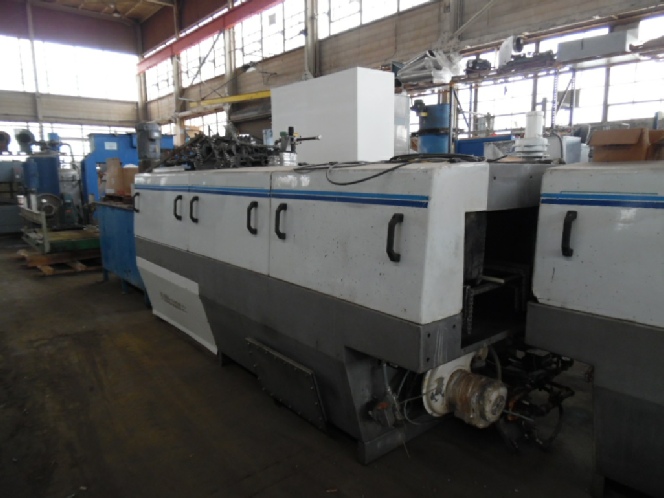

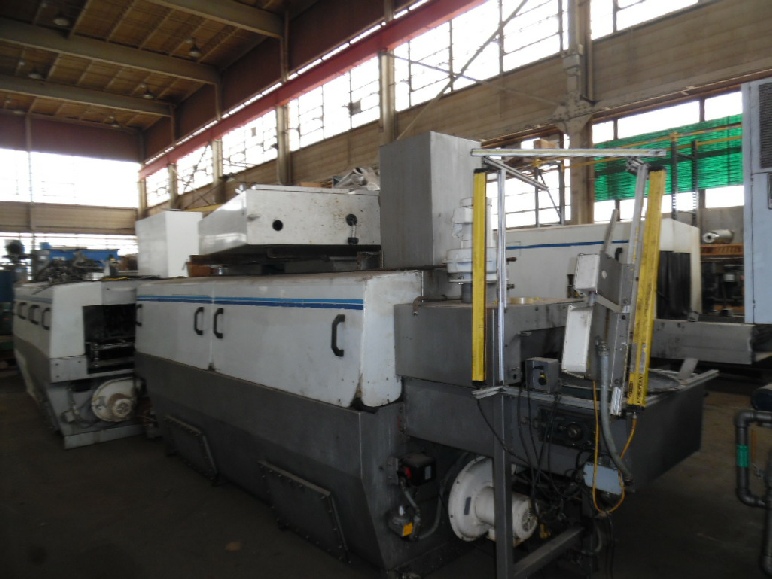

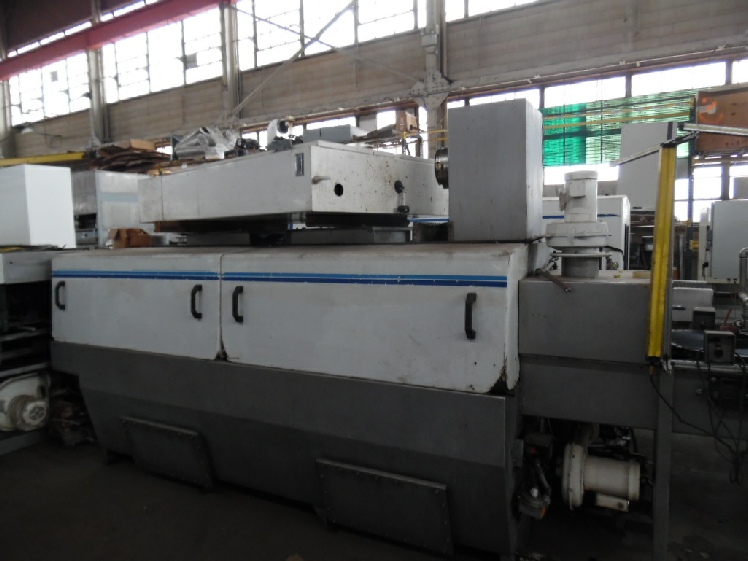

18” x 6” Belt Conveyor Washer
Description
Stock Number:
H1236
SPECIFICATIONS:
- Maximum Part Width: 18"
- Maximum Part Height: 6"
- Loading Height: 42”
- 43” Load / 18” Transition / 90” Wash / 18” Transition / 18” Drain / 54” Rinse / 18” Drain / 54” Regen Blow-Off / 12” Transition / 60” Cool / 42” Unload
- Heat Source: Natural Gas: Wash: 400,000 BTU / Rinse: 270,000 BTU / Chiller: 85,000 BTU
- Wash Pump: 7.5 HP / 180 GPM @ 30 PSI
- Rinse Pump: 5 HP / 90 GPM @ 30 PSI
- High Pressure Pump: 150HP / 180 GPM @ 1400 PSI
- Wash Tank Capacity: 475 USGAL
- Rinse Tank Capacity: 300 USGAL
- Regen Blower: 30 HP / 1180 CFM @ 39” SP
- Dimensions: 36’-3/4” L x 9’-2-1/2” H x 8’-5-1/2” W
FEATURES:
- Stainless Steel Construction (cabinets, tanks, canopy and conveyor)
- Stainless Steel Pumps
- Solution Level Controls
- In-Series Filtration (100 / 50 / 30 micron)
- Light Curtain
- Exhaust Blowers
- Tank Access Panels
